Steel fixing Clamp for 32mm diameter tube - Sicomat

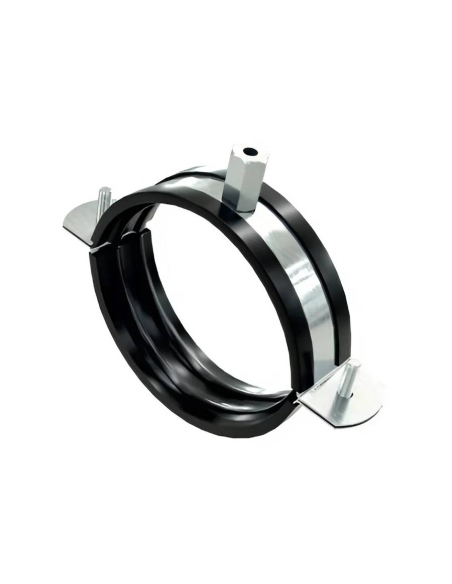

Clamp or collar for holding 32mm diameter aluminum pipes in distribution networks, made of steel with internal rubber coating to protect the surface of the pipe, preventing damage to it. Quick and easy fixing on walls, ceilings, partitions, beams... both in horizontal and vertical positions, depending on the desired configuration for the distribution network. The clamp has a simple mechanism using screws to close and grip the tube. Fixing using M8/M10 screw (not included in supply)

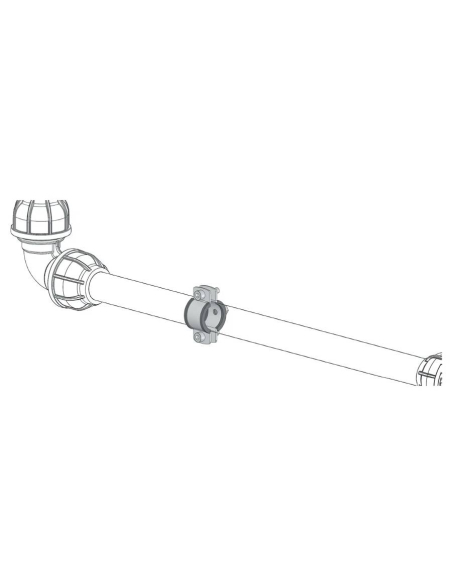

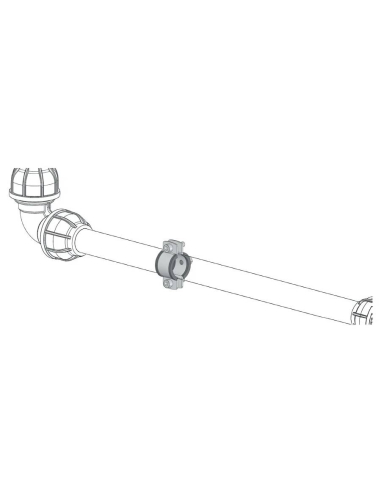

This type of element has the function of supporting the pipe, a sufficient number of clamps must be fixed to guarantee the correct hold of the pipe, these being an essential accessory to guarantee good stability and fixation of the pipe network in the facilities. It is recommended to install at least two clamps per tube. In addition, this type of clamping allows the expansion and contraction phenomena to occur freely due to the pressure of the fluid circulating inside the ducts, and can also create a blocking point. without allowing it to slide.







Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Reference: R230.032.000
• Tube diameter: 32mm
• Material: Steel
• Fixing: M8/M10 Screw
• Application: Compressed air / Vacuum / Nitrogen
• Maximum pressure conditions: -0.8 to 12.5bar
• Temperature conditions: -20ºC to +70ºC
• Weight: 90g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the installation site.
