Three-phase 7.5HP 230V motor starter with contactor

Three-phase 7.5HP 230V motor starter with contactor

€47.12 Tax included

€38.94 tax excl.

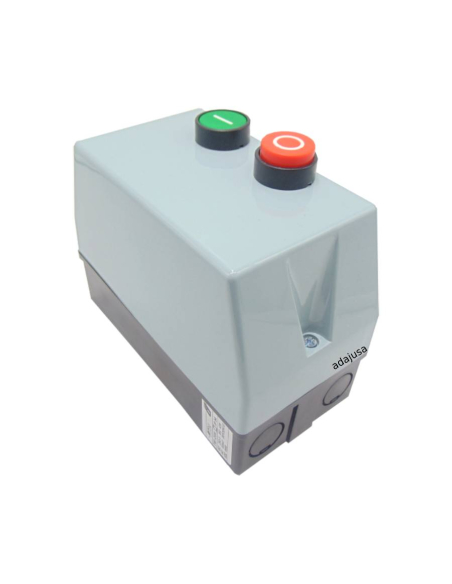

Direct starter box for 5.5Kw (7.5HP) 220/230 V three-phase motors , with thermal relay for motor protection, start stop buttons included.

Reference: ADC2205503



Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.



Direct starter box for 5.5Kw (7.5HP) 220-230Vac three-phase motors, with contactor and thermal relay for motor protection.


Characteristic:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: ADC2205503

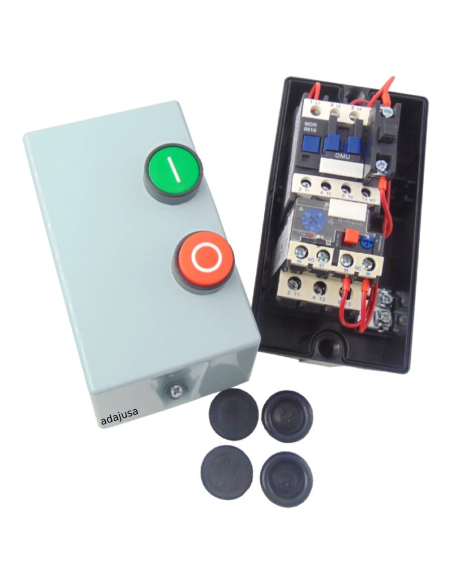

The box includes:

  • Polycarbonate box.

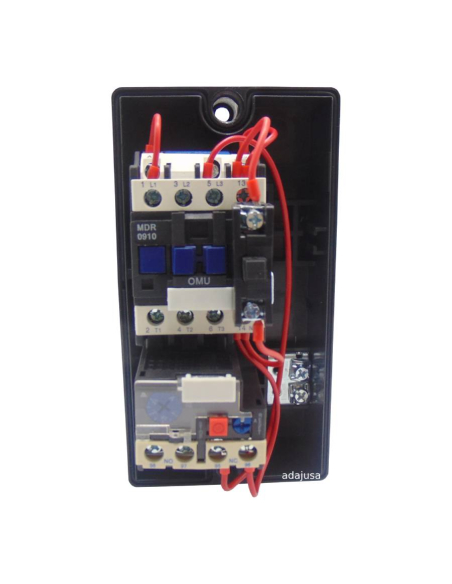

  • 25A AC3 contactor
  • Thermal relay with regulation 17 - 25A
  • "I" start button, green color
  • "O" stop/reset button, red color

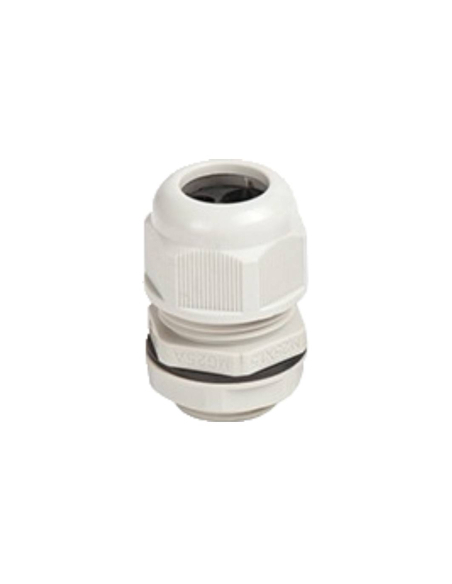

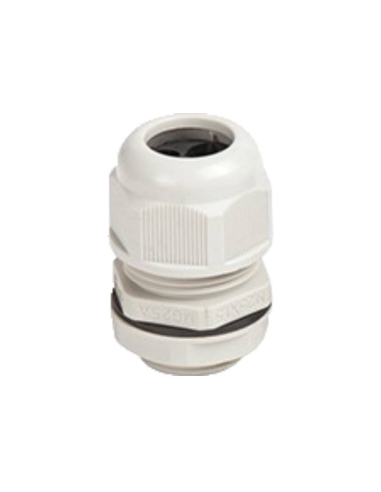

  • 2 M20 cable glands




Connection:



Dimensions:





For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
