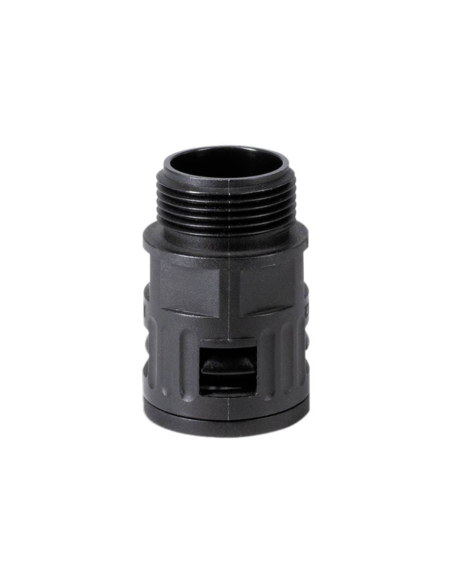

Straight quick-connect fitting, M50 size, body made of silicone-, cadmium- and halogen-free polyamide (PA) with thermoplastic polyester (TPE) seal, available in dark grey or black. Fitting designed with conical inner sealing, male thread; guarantees a secure and hermetic connection with the tube.
These fittings have excellent resistance to acids, solvents, oil and petrol; in the event of a fire they do not emit toxic fumes. Protection class IP66.
Designed according to the FLEXAquick quick-connection system, they are easy to assemble and disassemble thanks to their one-piece connector with snap closure and opening with a sleeve. Their external dimensions are minimal for installation in confined spaces. As it is an insulating connector, it is suitable for use in industrial areas such as machine construction and industrial plants.
These fittings are recommended for coupling to ROHRflex polyamide flexible tubing.
Technical characteristics:
- Manufacturer/Supplier: Gaestopas
- Dark grey colour reference: 5020.055.045
- Black color reference: 5020.055.245
- Thread: M50 x 1.5 Metric EN 60423
- Material: Body polyamide PA / Gasket thermoplastic polyester TPE
- Temperature range: -40ºC to +120ºC
- Dust/water protection grade: IP66
- Certificates and regulations: CE, EN / IEC 61386-23, UL 1696 | CSA 22.2, UR file E86359, ASTM E162 | E662 SPM 800-C, Gost | Llodys Register
Professional use material, install in compliance with the regulations in force at the installation site.
