MCB circuit breaker 3 poles 20A (3x20A) Curve C - LS
MCB circuit breaker 3 poles 20A (3x20A) Curve C - LS

MCB circuit breaker 3 poles 20A (3x20A) Curve C - LS

€17.59 Tax included

€14.54 tax excl.

3-pole 20A Curve C MCB circuit breaker , for protection against short circuits and overloads in three-phase installations. With an assigned cutting power of 6000A.

Reference: BKJ63N 3P C20A

3-pole magneto-thermal diagram

LS Industrial Systems Logo

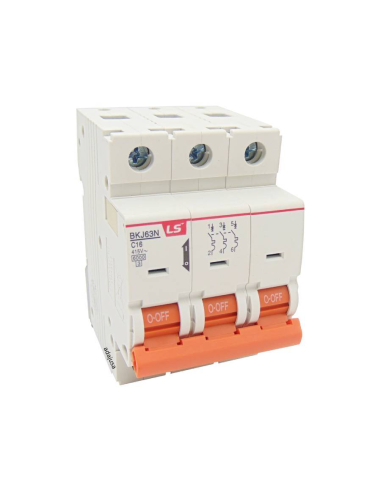

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


3-pole 20A curve C MCB circuit breaker , for protection against short circuits and overloads in three-phase installations and elements. High rated breaking capacity, 6000A according to IEC 60898-1.

Ideal for use in both domestic or industrial installations and in machinery automation cabinets.

High reliability and performance, allowing a high number of work cycles.

Wide range of accessories available for these magneto-thermal switches.

Main characteristics of the magneto-thermal device:

  • Manufacturer/Supplier: LS (LG)
  • Reference: BKJ63N 3P C20A
  • Nominal intensity of the magnetothermic : 20A
  • Number of poles: 3 (3x20A)
  • Use of magneto-thermal devices: domestic, tertiary and industrial sectors
  • MCB breaking capacity : 6000A
  • Operating voltage: 230/400Vac 50/60Hz
  • Firing curve: C
  • Mechanical life: >6000 operations
  • Regulation: IEC60898-1
  • Marked: CE
  • Allows the use of pin-type connection combs
  • Connection capacity: 25mm² cable
  • Width: 3 modules (3x17.8mm)

Material for professional use, install in compliance with the regulations in force at the installation site.
