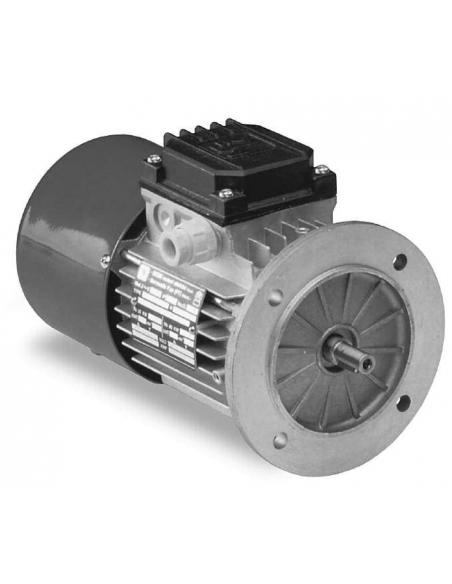

Electric motor with brake, three-phase 2.2kW (3HP) 230/400Vac 1500 rpm Flange B5. Made of aluminum cast iron.
Features:
- Manufacturer: MGM
- Manufacturer's Reference: BA100LA4 B5
- Engine type: self-braking squirrel cage async
- Power: 2.2 Kw (3HP)
- Efficiency: IE1
- Voltage: 230/400 Vac., 50/60Hz.
- Number of poles: 4 Poles
- Revolutions: 1410 rpm
- Intensity at 400V: 5A
- Power factor: 0.78
- Torque (Cn): 14.9 Nm
- Brake type: electromagnetic.
- Brake torque: 40 Nm.
- Continuous service: S1.
- Degree of protection: IP54
- Clamping type: Flange B5
- Shaft Diameter: 28mm.
- Flange Diameter: 250mm
- PAM Flange: 250/28
- Housing size 100
- Housing material: Aluminum.
- Weight: 25 Kg.
- CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.
